Pipe Coating
- Automatic guns and centrifugal wheels
- For manual and automatic lances
- For all common materials for pipe coating
Product description

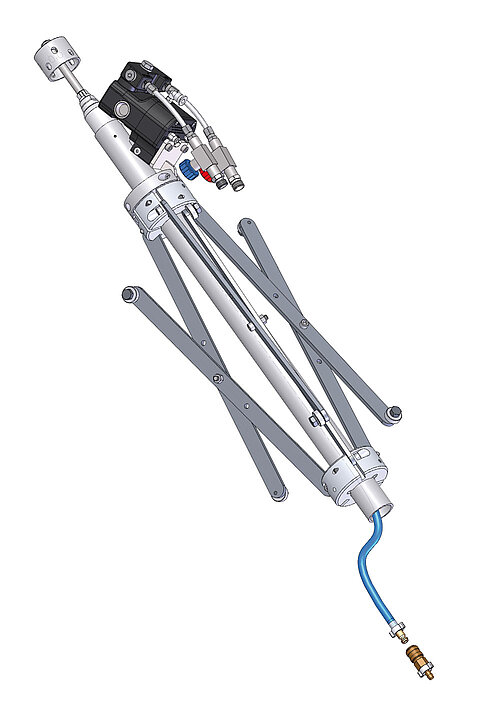

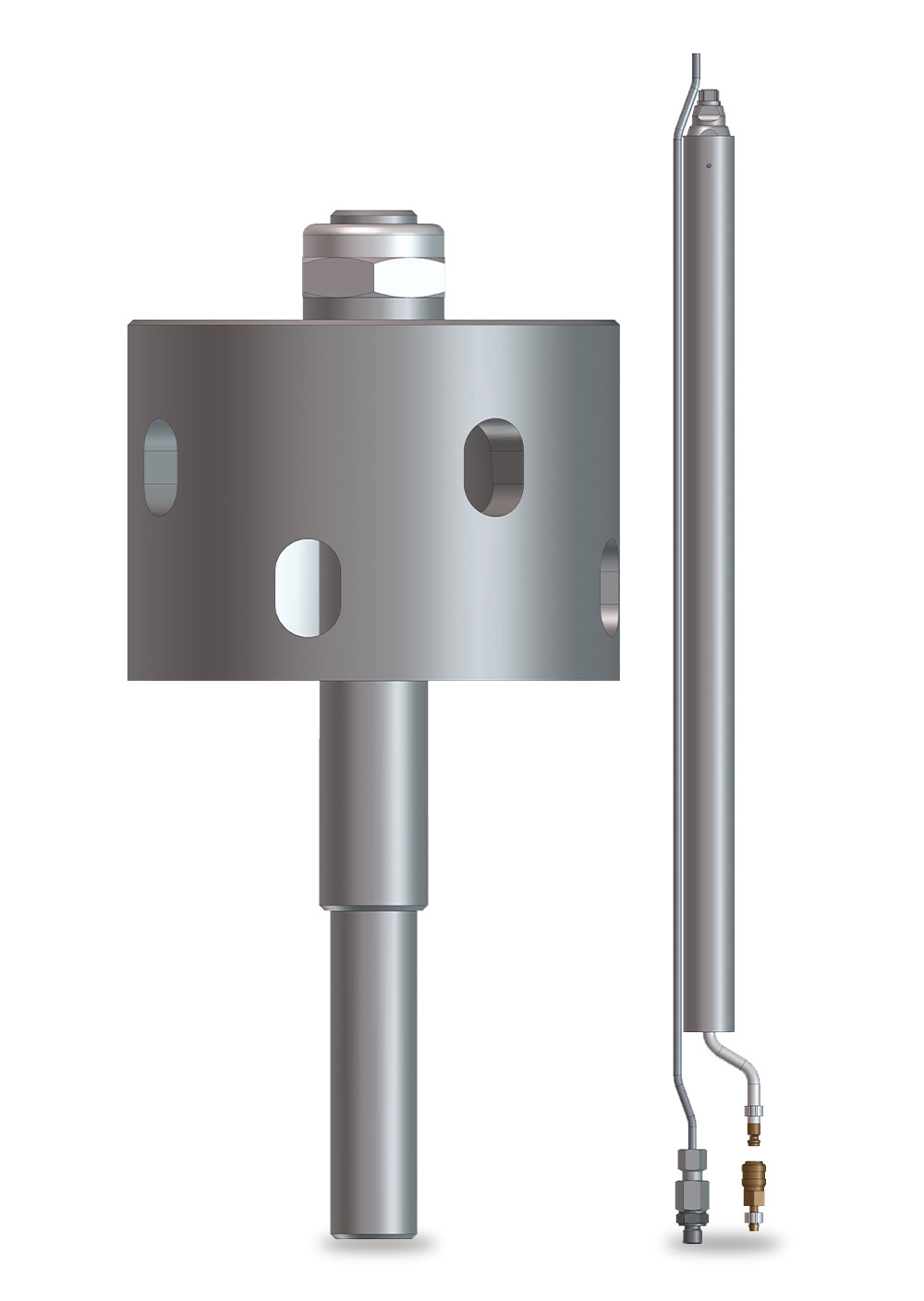

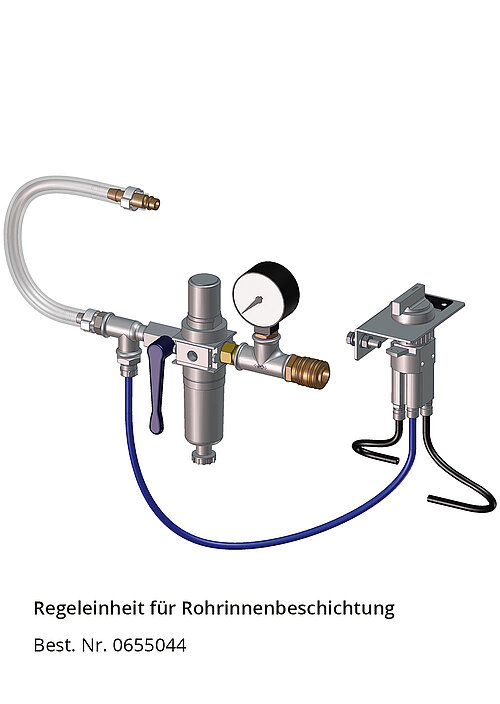

Pipes with a diameter of 50 - 800 mm are coated from the inside with a spinning wheel without rotating the pipe. Coating takes place in the backward movement of the traversing unit used. For pipes with a diameter of 50 - 100 mm, a spinning wheel with two centering devices suitable for the corresponding pipe diameter is required. For pipes with a diameter of 100 - 400 mm (optionally up to 800 mm) we offer continuously adjustable centering devices. Complete equipment for internal pipe coating with centrifugal wheels includes a control unit with automatic valve for mounting on the pump, including all material- and air-carrying hoses. Based on this equipment, we also offer a hand gun for manual internal coating of pipes, bends and angles up to 3 m in length. The size and shape of the blast wheel depend on the pipe diameter and materials.
Technical data
| Description | Rotary atomizer wheel |
| Order numbers | |

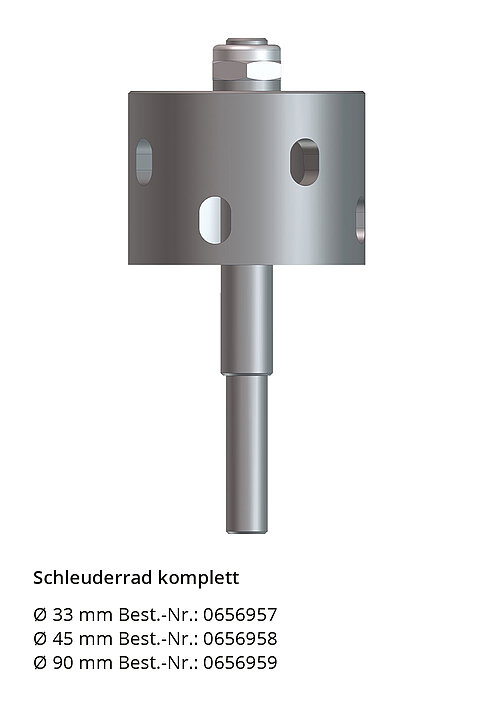

| ø 33 mm | 0656957 |
| ø 45 mm | 0656958 |
| ø 90 mm | 0656959 |

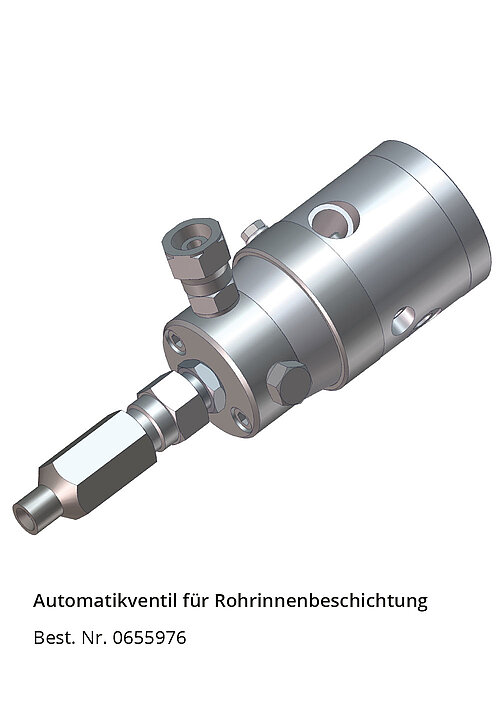

| Description | Automatic valve for internal pipe coating |
| Order number | 0655976 |

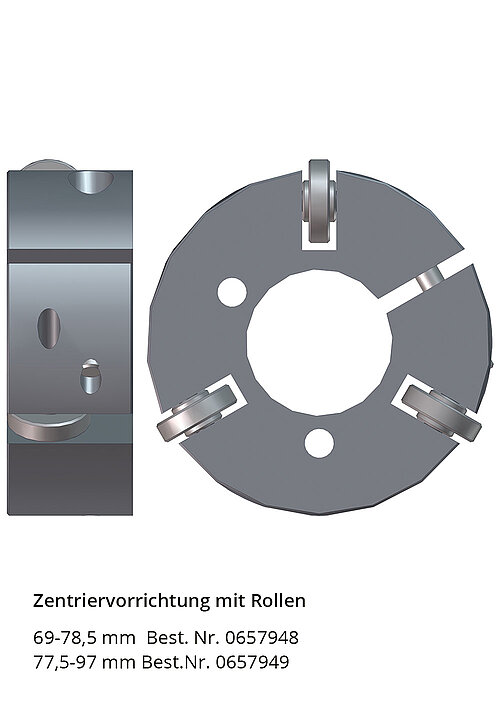

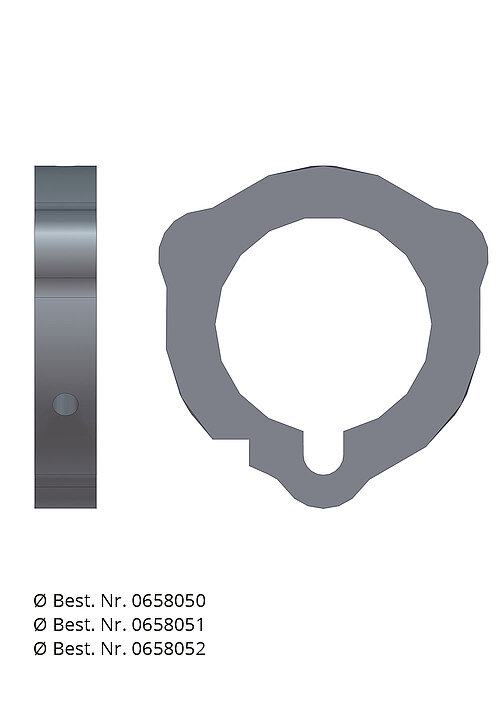

| Description | Centering guide with rollers |
| Order numbers | |
| 69-78,5 mm | 0657948 |
| 77,5-97 mm | 0657949 |

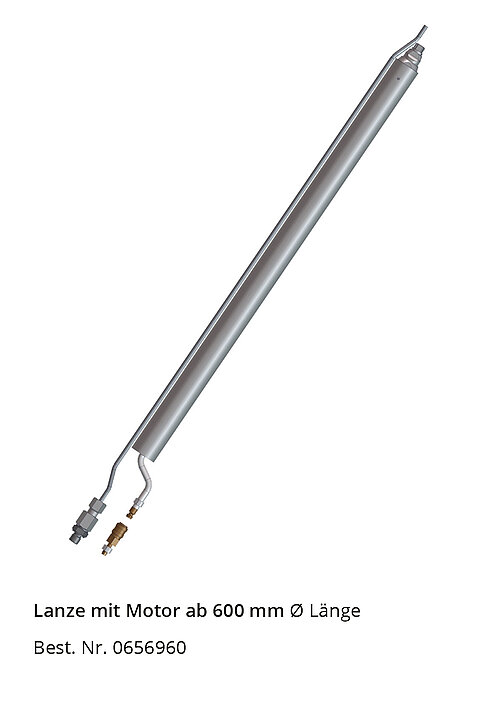

| Description | Lance with motor 600 mm long |
| Order number | 0656960 |

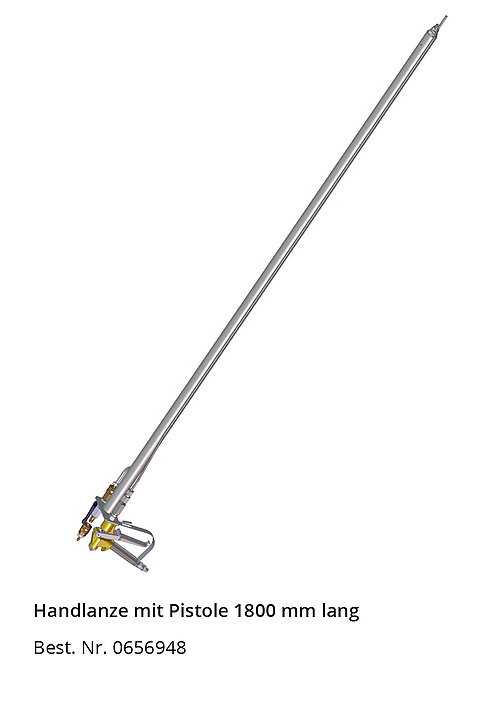

| Description | Hand lance with gun 1800 mm long |
| Order number | 0656948 |

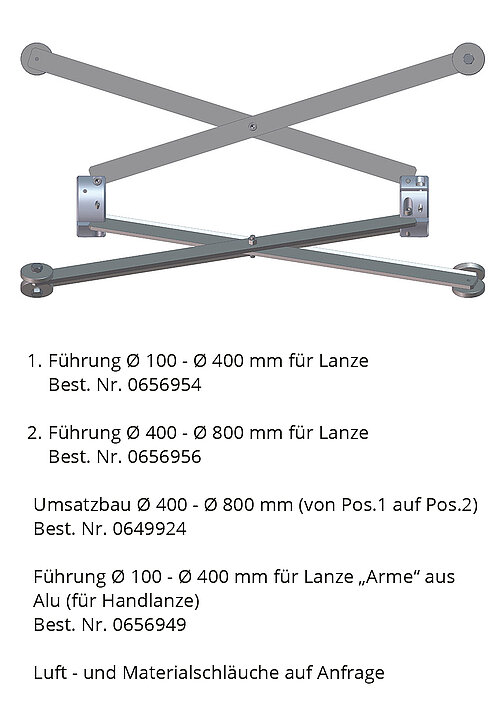

| Description | Guide |
| Order numbers | |
| ø 100 - ø 400 mm for lance | 0656954 |
| 400 - ø 800 mm for lance | 0656956 |
B - On container, D - on tripod, F - on chassis, G - on rack, GZ - On Rack with feed funnel, W - on wall mount,
ASL - suction tube, DAS - Direct suction
Application areas
- Rohrinnenbeschichtung mit Automatikpistolen für manuelle oder automatische Spritzlanzen
- Innenbeschichtung von verlegten Rohren mit Robotertechnik und Schleuderrad
- Schleuderradsysteme für Rohre ab 50 mm Durchmesser
- Selbst Winkel und Abzweigungen wurden mit einem Schleuderrad auf Handlanze erfolgreich beschichtet
- Spezialspritzeinrichtung für die Muffenbeschichtung von Gußrohren (Durchmesser: 80 – 800 mm)
Pipes with a diameter of 50 - 800 mm are coated from the inside with a spinning wheel without rotating the pipe. Coating takes place in the backward movement of the traversing unit used. For pipes with a diameter of 50 - 100 mm, a spinning wheel with two centering devices suitable for the corresponding pipe diameter is required. For pipes with a diameter of 100 - 400 mm (optionally up to 800 mm) we offer continuously adjustable centering devices. Complete equipment for internal pipe coating with centrifugal wheels includes a control unit with automatic valve for mounting on the pump, including all material- and air-carrying hoses. Based on this equipment, we also offer a hand gun for manual internal coating of pipes, bends and angles up to 3 m in length. The size and shape of the blast wheel depend on the pipe diameter and materials.
| Description | Rotary atomizer wheel |
| Order numbers | |
| ø 33 mm | 0656957 |
| ø 45 mm | 0656958 |
| ø 90 mm | 0656959 |
| Description | Automatic valve for internal pipe coating |
| Order number | 0655976 |
| Description | Centering guide with rollers |
| Order numbers | |
| 69-78,5 mm | 0657948 |
| 77,5-97 mm | 0657949 |
| Description | Lance with motor 600 mm long |
| Order number | 0656960 |
| Description | Hand lance with gun 1800 mm long |
| Order number | 0656948 |
| Description | Guide |
| Order numbers | |
| ø 100 - ø 400 mm for lance | 0656954 |
| 400 - ø 800 mm for lance | 0656956 |
B - On container, D - on tripod, F - on chassis, G - on rack, GZ - On Rack with feed funnel, W - on wall mount,
ASL - suction tube, DAS - Direct suction
Application areas
- Rohrinnenbeschichtung mit Automatikpistolen für manuelle oder automatische Spritzlanzen
- Innenbeschichtung von verlegten Rohren mit Robotertechnik und Schleuderrad
- Schleuderradsysteme für Rohre ab 50 mm Durchmesser
- Selbst Winkel und Abzweigungen wurden mit einem Schleuderrad auf Handlanze erfolgreich beschichtet
- Spezialspritzeinrichtung für die Muffenbeschichtung von Gußrohren (Durchmesser: 80 – 800 mm)
