WIWA DOSYS XL

  • Precision and performance
  • Countless customized configurations due to modular design
  • Environmental friendliness and cost savings through removal from large containers
Brochure

Description

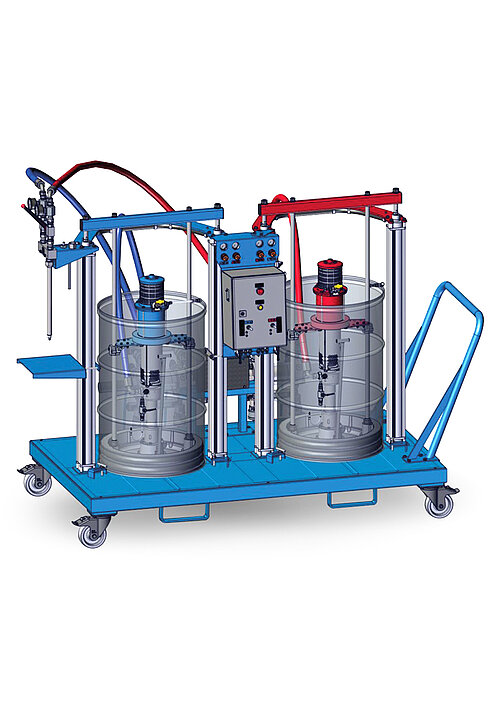

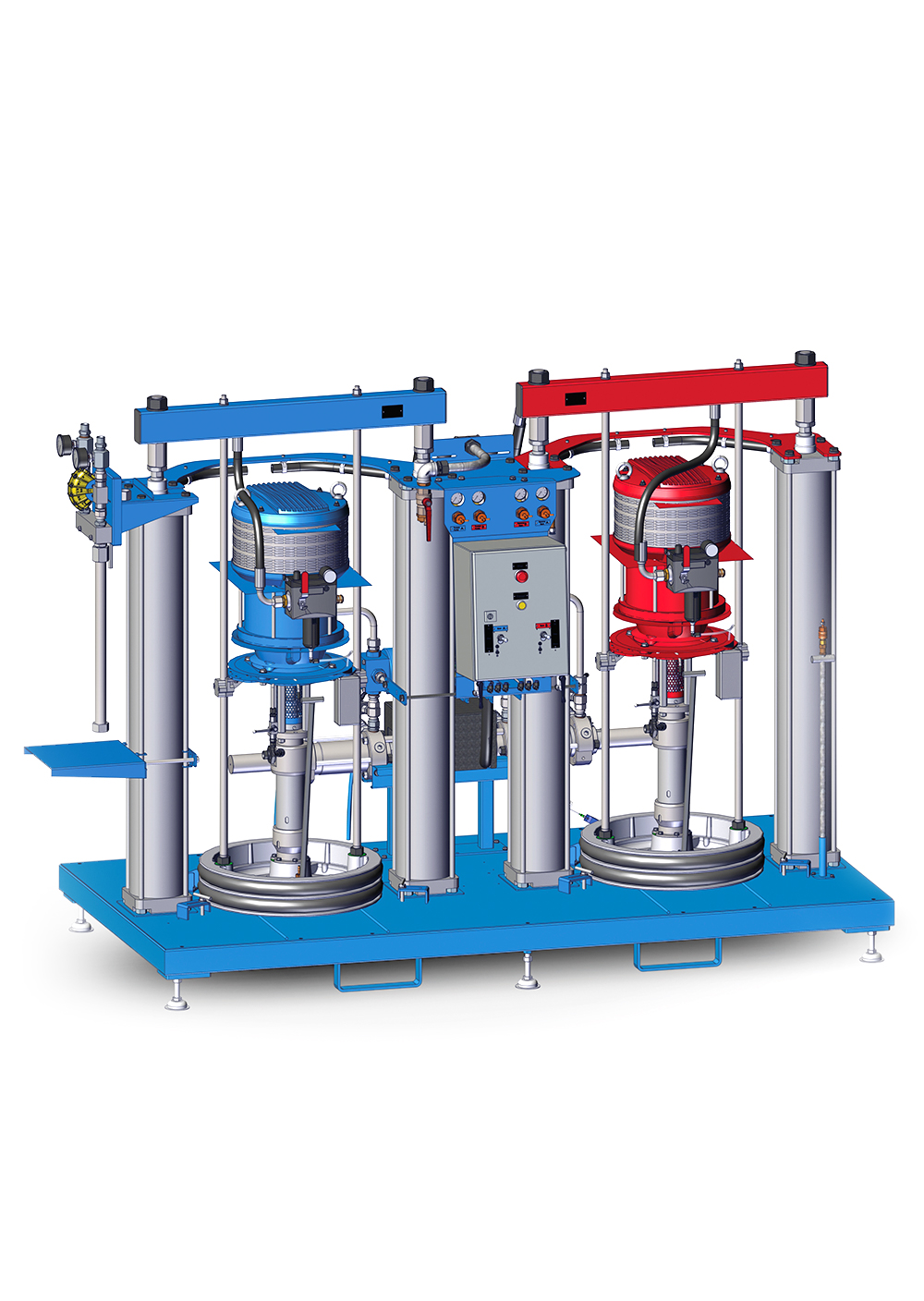

High outputs without interruptions with the WIWA DOSYS XL.

With the larger, more stationary WIWA DOSYS XL, too, results that vary depending on the day and the user, unevenness in the material surface, and expensive and time-consuming leveling work are a thing of the past. The system, equipped with either pedestals or rollers, was developed especially for large-area industrial coatings where a continuous delivery rate is required.


With the WIWA DOSYS XL, you can count on bubble-free mixing with a constant mixing ratio and therefore on consistent quality of your job. The removal from different sized containers makes it an environmentally friendly and economical partner for every project.

Technical Data

Output per cycle1263 ccm
Max. inbound air pressure8 bar
Max. operating pressure192 bar
Mixing ratio5:1
Order number0671758
Output per cycle2106 ccm
Max. inbound air pressure8 bar
Max. operating pressure270 bar
Mixing ratio1:1
Order number0671752
Output per cycle2106 ccm
Max. inbound air pressure8 bar
Max. operating pressure208 bar
Mixing ratio1:1
Order number0671751
N - Normal steel galvanized, not stainless, R - stainless, RS - Stainless steel, rust and acid resistant,
B - On container, D - on tripod, F - on chassis, G - on rack, GZ - On Rack with feed funnel, W - on wall mount,
ASL - suction tube, DAS - Direct suction

Fields Of Application

  • Industry
  • Machine and vehicle construction
  • Aircraft industry
  • Wind power industry
  • Wagon factories
  • Shipbuilding
  • Apparatus and mechanical engineering
  • Concrete construction

Materials

  • Filler materials based on epoxy resin, polyurethane or peroxide
  • Adhesives
  • Sealants
  • Thickeners
  • Mastics
  • Insulating materials

High outputs without interruptions with the WIWA DOSYS XL.

With the larger, more stationary WIWA DOSYS XL, too, results that vary depending on the day and the user, unevenness in the material surface, and expensive and time-consuming leveling work are a thing of the past. The system, equipped with either pedestals or rollers, was developed especially for large-area industrial coatings where a continuous delivery rate is required.


With the WIWA DOSYS XL, you can count on bubble-free mixing with a constant mixing ratio and therefore on consistent quality of your job. The removal from different sized containers makes it an environmentally friendly and economical partner for every project.

Output per cycle1263 ccm
Max. inbound air pressure8 bar
Max. operating pressure192 bar
Mixing ratio5:1
Order number0671758
Output per cycle2106 ccm
Max. inbound air pressure8 bar
Max. operating pressure270 bar
Mixing ratio1:1
Order number0671752
Output per cycle2106 ccm
Max. inbound air pressure8 bar
Max. operating pressure208 bar
Mixing ratio1:1
Order number0671751
N - Normal steel galvanized, not stainless, R - stainless, RS - Stainless steel, rust and acid resistant,
B - On container, D - on tripod, F - on chassis, G - on rack, GZ - On Rack with feed funnel, W - on wall mount,
ASL - suction tube, DAS - Direct suction

Fields Of Application

  • Industry
  • Machine and vehicle construction
  • Aircraft industry
  • Wind power industry
  • Wagon factories
  • Shipbuilding
  • Apparatus and mechanical engineering
  • Concrete construction

Materials

  • Filler materials based on epoxy resin, polyurethane or peroxide
  • Adhesives
  • Sealants
  • Thickeners
  • Mastics
  • Insulating materials
